Drilling Use High Viscosity Polymer SHN-FM101

SHN-FM 101 is a copolymer of acrylamide and acrylate. It has the advantages of adjust the flow pattern in drilling fluid to inhibit shale dispersion, resist inorganic ion pollution, reduce drilling fluid loss,increase drilling speed, reduce downhole complexities and reduce drilling costs.

Targeted Solution for Enhanced Drilling Operations

SHN-FM101 addresses the needs of drilling fluids companies and operators requiring advanced polymer viscosifiers for drilling fluids designed to maintain rheological consistency and wellbore stability under challenging downhole conditions. This high viscosity polymer effectively inhibits shale dispersion and reduces drilling fluid loss, thereby reducing operational risks and minimizing non-productive time. The product is tailored for use in both dispersed and low-solid non-dispersible polymer drilling fluid systems, providing enhanced system compatibility for bore pile use polymer and other injection methods.

Advanced Technical Features and Specifications

Engineered as a copolymer of acrylamide and acrylate, SHN-FM101 has a solid content of ≥89% with a controlled particle size between 20–40 mesh, ensuring rapid dissolution within 45 to 60 minutes. The polymer exhibits superior anti-shearing resistance and tolerates inorganic ion pollution, features vital for maintaining the stability of drilling fluid additives in various salinity environments. With a pH operating range of 7.0–10.0 and low residual monomer content (≤500 ppm), it consistently delivers medium to high viscosity in salty drilling fluid solutions, making it a reliable drilling polymer for demanding applications.

Robust Performance for Industry Applications

SHN-FM101 is widely adopted by drilling fluids companies for both oil well and bore pile use polymer applications. Its friction-reducing properties between drill strings and well walls extend tool life and enhance drilling speed. By improving the rheological profile and inhibiting shale dispersion, the product contributes to efficient mud formulation and fluid loss control—essential for cost-effective drilling operations. This drilling fluid additive integrates seamlessly into existing drilling fluid systems, enhancing both operational stability and overall performance in complex downhole environments.

• Reducing friction between drilling rod and hole wall effectively, protect drill rod and bits.
• Improve rheological properties and stability shale structure.
• On-site using process and maintenance is simple.
• Little dosage and low drilling fluid cost.

• Good Anti-shearing performance.
• Deal with sediments quickly and make drilling filling easier.
• High viscosity to protect drill bits and drilling rod very well to save total drilling cost.
• Can be both used in low solid non-dispersible polymer drilling fluid system and dispersed drilling fluid system.

Use Scenarios
Optimization of Rheology in Deep Well Drilling
In challenging deep well drilling environments where fluid rheology must be precisely controlled, SHN-FM101 serves as an essential drilling fluid additive for drilling fluids companies managing complex formations. Its ability to act as a polymer viscosifier for drilling fluids enhances the stability of mud systems against shale dispersion and fluid loss. This enables operators to maintain optimal drilling rates while protecting borehole integrity. The polymer’s compatibility with dispersed and non-dispersed systems allows it to be seamlessly incorporated into drilling fluid formulations, supporting environmental compliance, operational safety, and system integration requirements typical in advanced drilling programs.

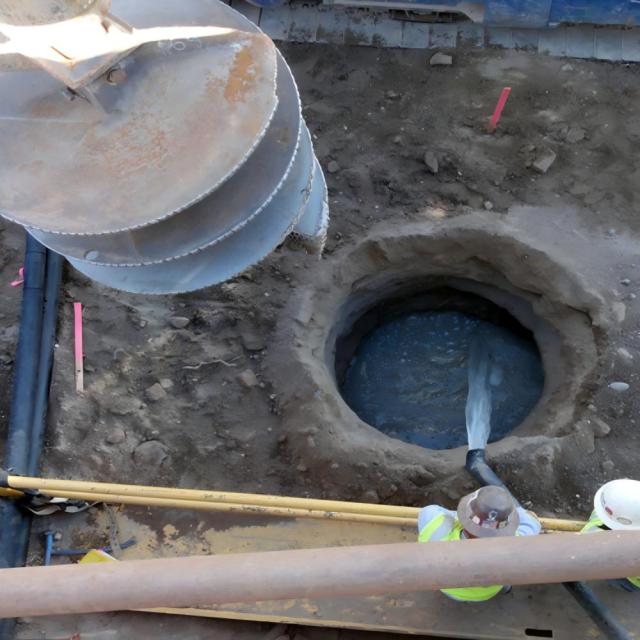

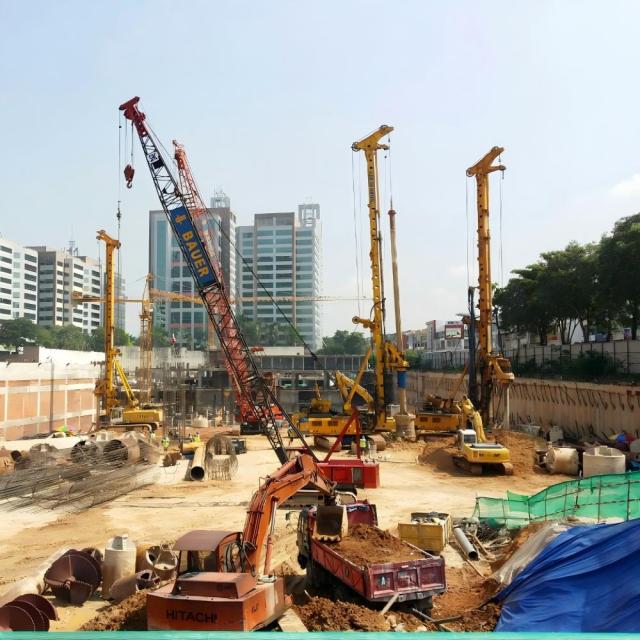

Friction Reduction and Wear Protection in Bore Pile Construction
During bore pile construction, SHN-FM101 is utilized as a bore pile use polymer to reduce frictional forces between drilling equipment and the borehole wall. This high viscosity polymer decreases mechanical wear on drill strings and bits, extending equipment service life and minimizing downtime. Its robust resistance to inorganic ion interference ensures fluid stability even in high mineral content formations. The product enhances drilling fluid performance by improving viscosity control and sediment suspension, which simplifies cuttings removal and enhances operational efficiency. Integration with standard drilling fluid additive packages facilitates smooth deployment within existing foundation drilling workflows.

The FM 101 Specification:

Item	Specification

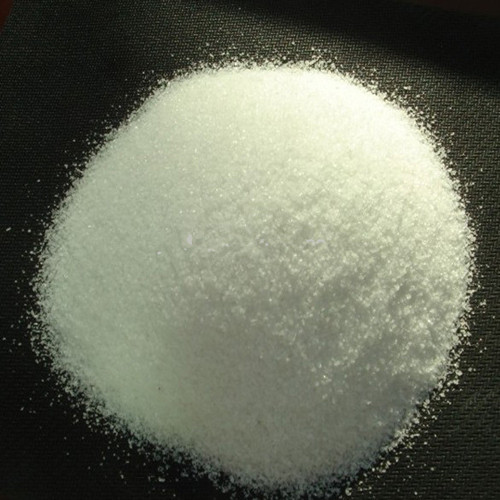

Appearance	White Powder or Granule
Solid Content%	≥89%
Mesh	20-40 Mesh
Bulk Density	0.80 – 1.02 g/cm³
Viscosity (0.1% Solution)	Medium to High
Viscosity (0.1% Solution in salty condition)	Medium
Residual Monomer	≤500ppm
Insoluble Matter	0.2% max
Dissloving Time	45-60 Minutes
PH Value	7.0-10.0

The FM 101 Guidelines:

SHN-FM 101 is recommened in low permeability soil to stabilize of the excavation and improve the settlement of drilled cuttings. dosage range between 0.1% to 0.5% by volume of water.if meet complex geological conditions,just increase dosage or ask technical support from local supplier.

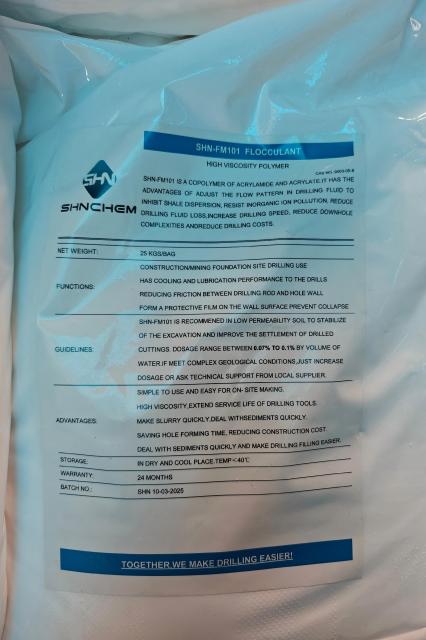

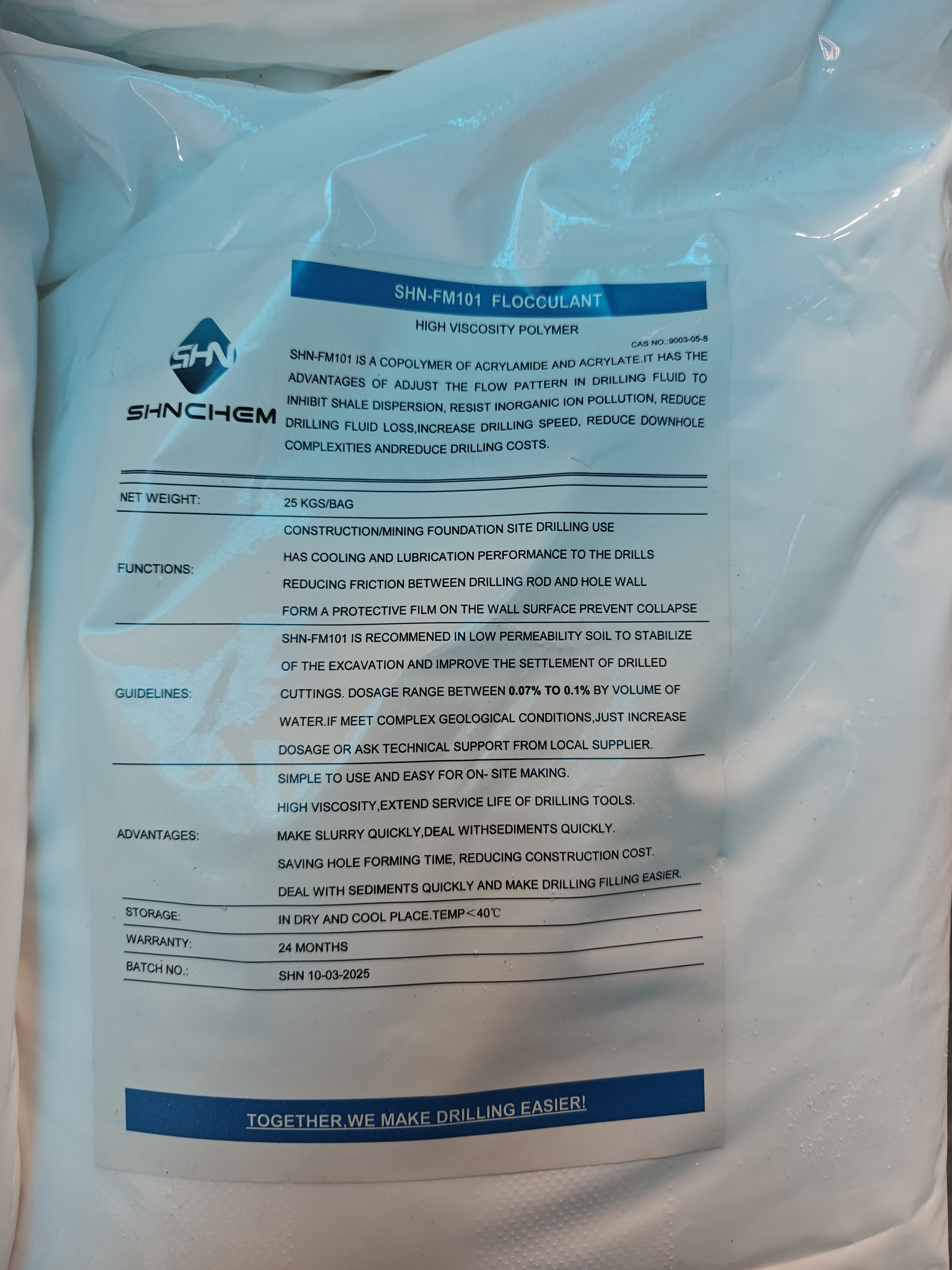

The FM 101 Packing and Storage:

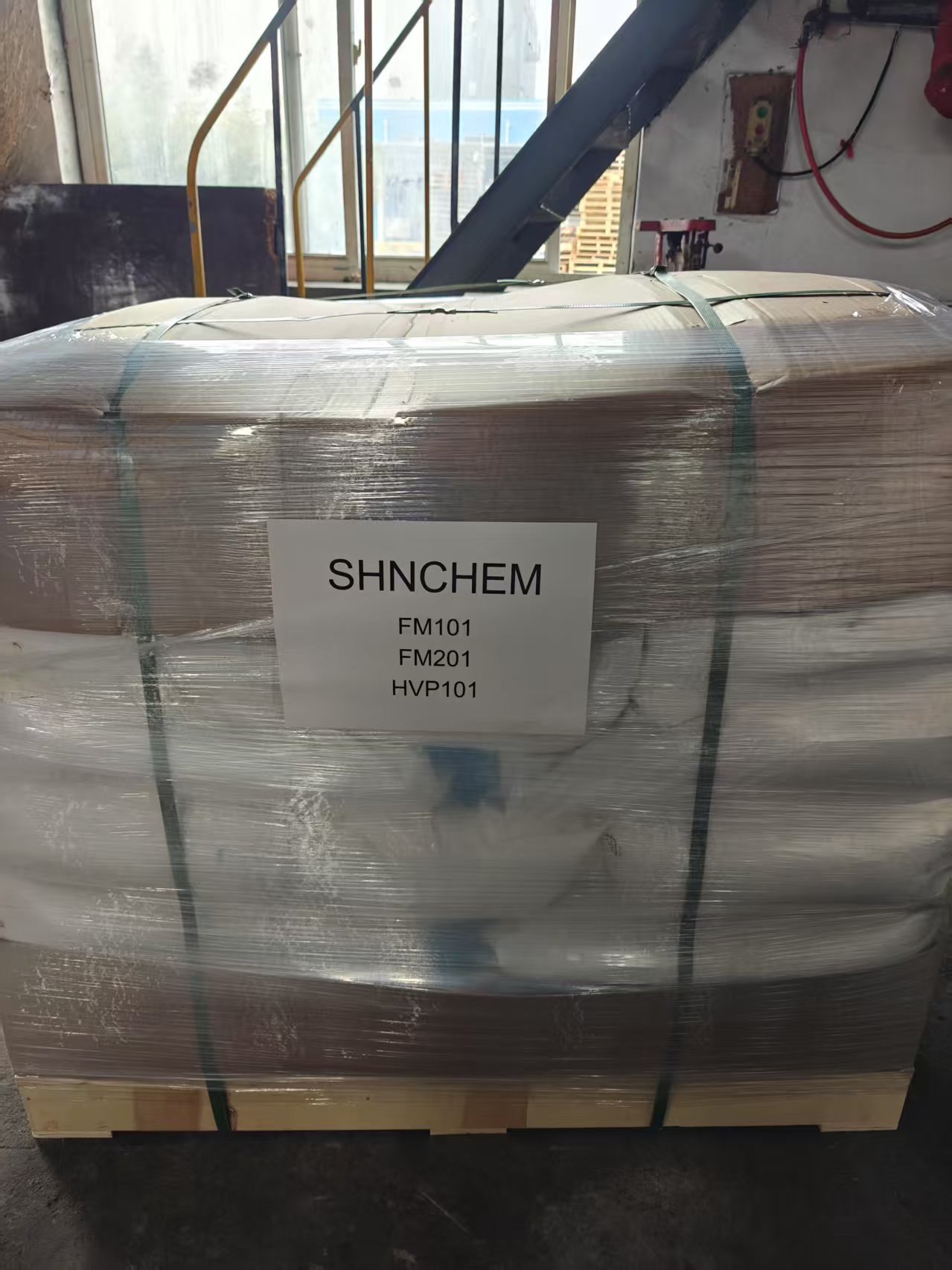

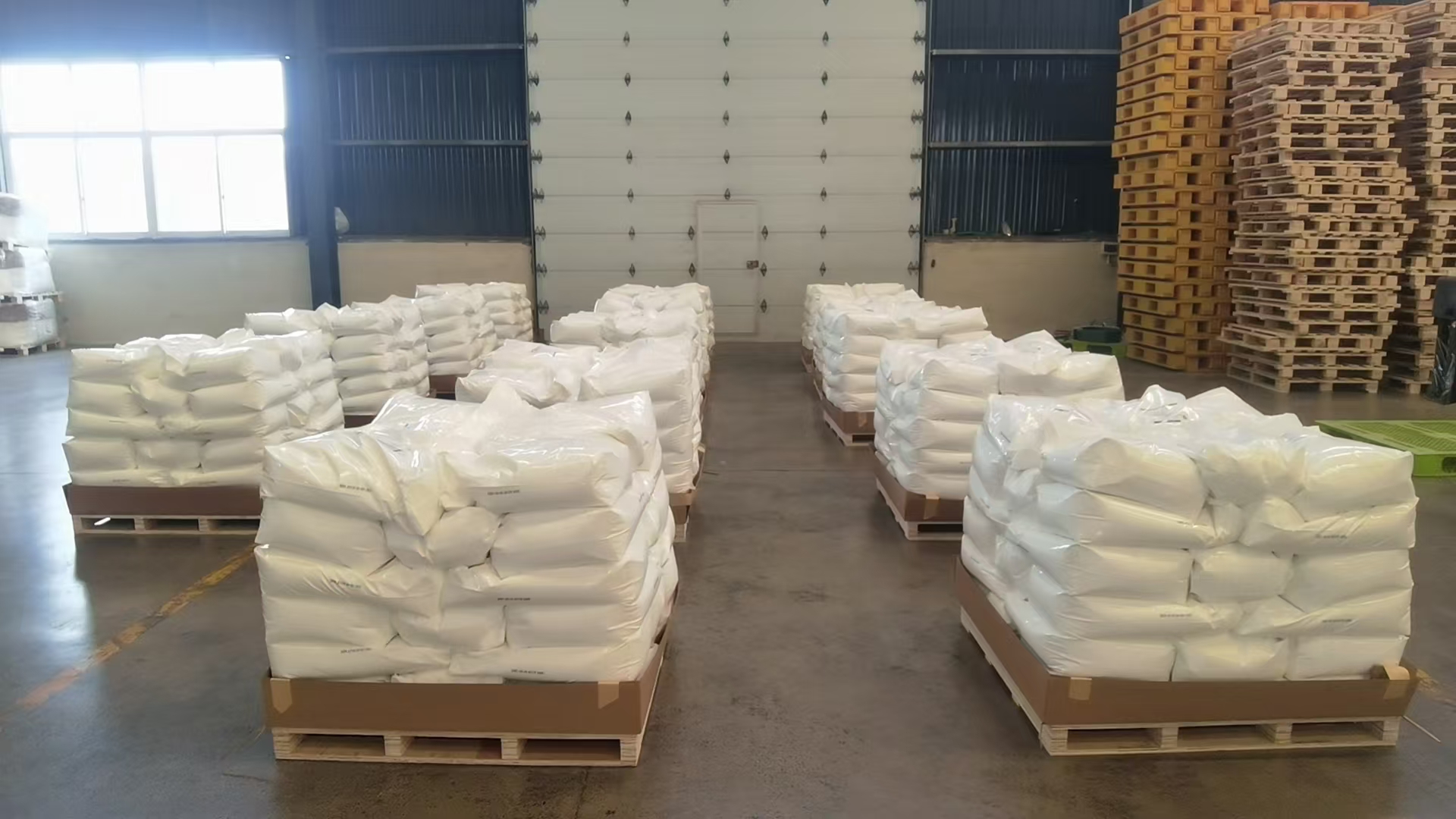

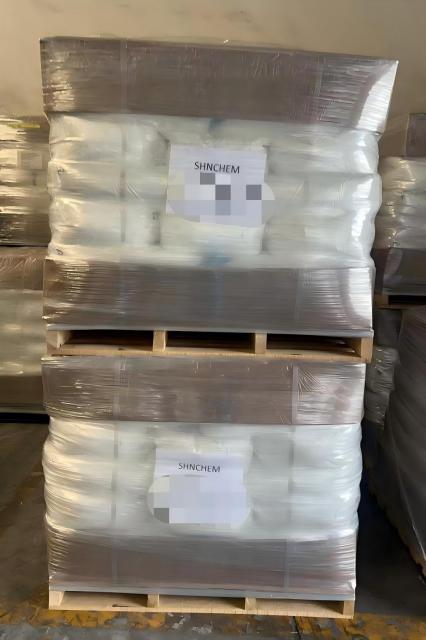

• 25 kgs,1000 kgs bag.
• Accpet bag design according to client's requirement.
• Please store in cool and dry place.

FAQ

What are the primary benefits of using SHN-FM101 in drilling operations?

SHN-FM101, a high viscosity polymer for drilling fluids, improves drilling efficiency by reducing friction between the drill string and borehole, inhibiting shale dispersion, resisting inorganic ion pollution, and minimizing fluid loss. These features help protect drilling equipment and reduce overall operational costs.

Is SHN-FM101 compatible with all drilling fluid systems?

Yes, SHN-FM101 works well in multiple drilling fluid systems, including low-solid non-dispersible polymer and dispersed drilling fluid systems. Its design ensures good anti-shearing performance and rapid sediment handling, making it a versatile drilling polymer additive choice.

How should SHN-FM101 be stored and handled on-site?

To maintain product stability and performance, store SHN-FM101 in a cool, dry environment away from moisture. Proper storage extends the shelf life of this polymer viscosifier for drilling fluids and ensures consistent results in field applications.

Can SHN Chem customize SHN-FM101 dosages for specific drilling conditions?

Yes, SHN Chem can advise on optimal dosage levels tailored to field conditions to balance cost and performance. Using SHN-FM101 at recommended dosages reduces overall drilling fluid additive consumption while maximizing efficiency and reducing wear on drill equipment.
